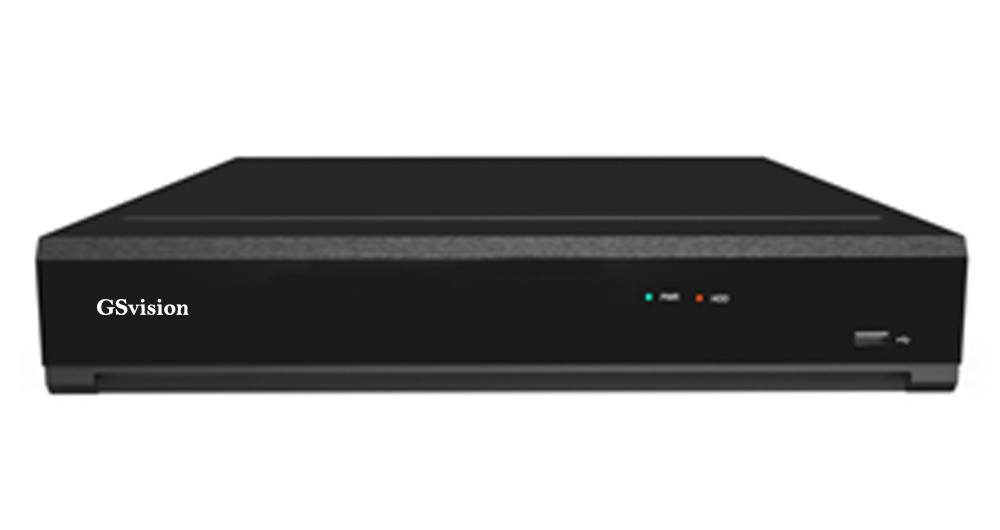

16 Channel Analog HD DVR
| 16 Channel HD Video Recorder |
| Support 8 Megapixels Resolution Recording |
| H.265 Video Compression |
| Support Mobile Phones based on iPhone and Android operation system |
| Composite Video Input Up to 24ch (Analog video + IP video) |
| 2 SATA HDD up to 16TB |
| Model | GS-HD3116R |
| Rear Panel |  |
| Video Compression | H.265/H.264 |
| Video System | NTSC/PAL |
| Operation System | Linux(embedded) |
| Analog Video-Input /Output | 16CH inputs / VGA and HDMI Output |
| IP Video Input | 8ch,(only IP up to 8ch) |
| Composite Video Input | Up to 24ch (Analog video + IP video) |
| Audio Input /Output | 4CH Inputs /1CH Output(RCA) |
| Display | Resolution 4K Model:
Analog : 8MP（15fps） 5MP（20fps） 4MP/3MP/1080P/720P/960H （30fps） IP : 4MP/3MP1080P/720P 5MP Model: Analog : 5MP（20fps） 4MP/3MP(30fps) 1080P/720P/960H IP : 4MP/3MP1080P/720P Feature
1/4/6/8/9/10/13/14/16/S.E.Q.
|
| Record | Resolution Analog : 8MP/5MP/4MP/3MP/1080P/720P/960H IP : 4MP/3MP1080P/720P Speed 4K Model:
Analog : 8MP:7fps(each ch) 5MP : 10fps(each ch) 4MP : 15fps(each ch) 3MP : 17fps(each ch) 1080P : PAL : 25fps(each ch)/NTSC : 30fps(each ch) IP : PAL : 25fps(each ch)/NTSC : 30fps(each ch) 5MP Model: Analog : 5MP:13fps(each ch) 4MP : 16fps(each ch) 3MP : 20fps(each ch) 1080P : PAL : 25fps(each ch)/NTSC:30fps(each ch) IP : PAL : 25fps(each ch)/NTSC: 30fps(each ch) |
| IP-Recording Bandwidth (Maximum Input Bandwidth) | 64Mbps |
| Maximum Output Brandwidth | 128Mbps |
| Maximum Decode Performance | 4K Model: 8MP: 56fps （Max 8CH Playback） 5MP: 160ps （Max 16CH Playback） 4MP: 240fps 3MP: 272fps 1080P: 480fps 5MP Model: （Max 16CH Playback） 5MP: 208fps 4MP: 256fps 3MP: 320fps 1080P: 480fps |
| Recording Mode | Continuous/Manual/Motion Detect |
| Synchronous Playback | 16CH |
| Network Type | Lan, DHCP, and DDNS |
| HDD Interface | 2SATA HDDs, up to 16TB |
| Multiplex Operation | Live display, record, playback, backup and network |
| USB | 1xUSB3.0 1*USB2.0(for mouse and backup/upgrade) |
| PTZ Control | Yes (RS485) |
| Mobile Surveillance | Support Mobile Phones Based On iPhone and Android Operation System |
| VGA/HDMI | 1024*768,1280*720,1280*1024,1440*900,1920*1080(1080P), 2560*1440(2K),3840*2160(4K) |
| Power Supply | DC 12V/5A |
| Dimension(WxDxH) | 378x340x50mm |
| Working Temperature | -10°C~+55°C |
| Working Humidity | 10%~90% |
